LOCKTON

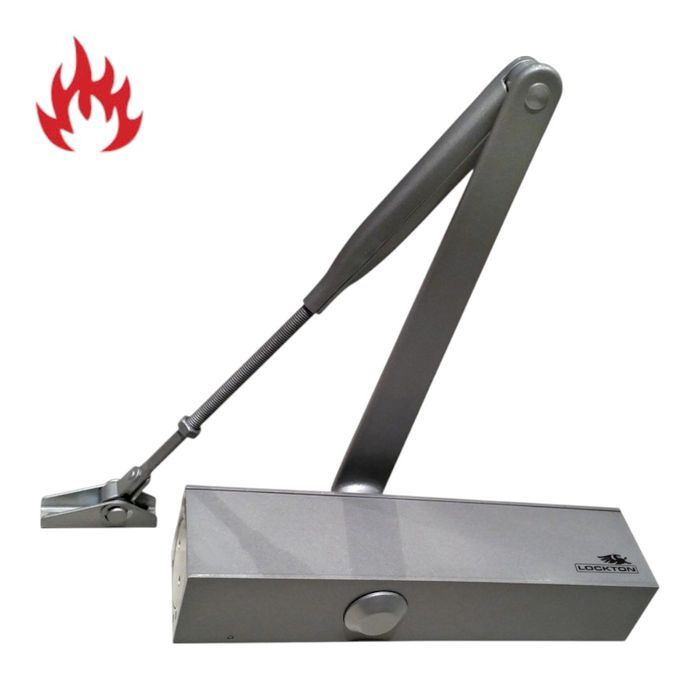

'165 Series' DOOR CLOSER - Rack & Pinion - (Adj. 2-6)
Art ID:
SGDC165-S
Description
PRODUCT DESCRIPTION
The LOCKTON Art. SGDC165-S Rack & Pinion Door Closer.
PRODUCT SPECIFICATION
- Rack & Pinion operation
- Suits Left & Right Opening Doors
- Suits Inward & Outward Opening Doors
- Delayed action function between 180° - 65°
- Comes with Standard arm
- Parallel Arm Bracket
- Supplied with both Timber and "Self Tapping" Metal Screw Packs
- Adjustable Backcheck (opening limit)
- Simple to read installation instructions
- Can be fitted with optional Hold Open Arm or Slide Track Arm (please see RELATED PRODUCTS)
- Closing & Latching Speed Adjustment
- Closing range 180° - 15°
- Latching speed range 15° - 0°
- Suitable for door sizes 2-6 adjustable on door with Hex Key
- Size #2: Door width of 850mm & Weight of 40kg
- Size #3: Door width of 950mm & weight of 60kg
- Size #4: Door width of 1100mm & Weight of 80kg
- Size #5: Door width of 1250mm & Weight of 100kg
- Size #6: Door width of 1400mm & Weight of 120kg
- 10 Year Warranty (*)
- Fire Rated AS1905, As1530
- Tested & certified to BS EN 1154:1997
- MADE IN TAIWAN
2-Hours : This product has been Fire tested & passed up to 2 hours
Cycle Tested : 500,000 Cycles
