'6000 Series' Tiebolt KNOB & LEVER COMBO - STOREROOM (75mm Rose / 60-70mm BSet) *Satin Chrome*

Description

PRODUCT DESCRIPTION

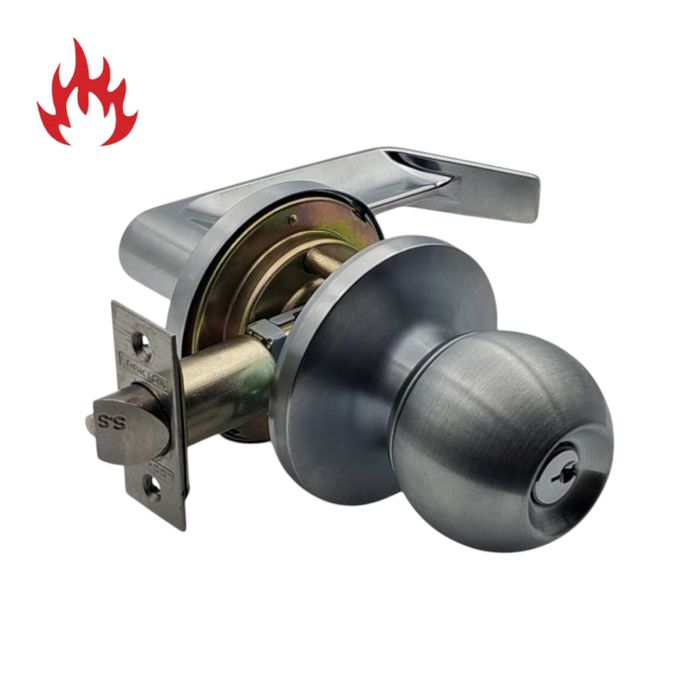

The LOCKTON Art. TL6062 - 6000 Series 'Storeroom' Tiebolt Knob & Lever Combo Set.

• Heavy-duty commercial lever and knob/lever sets, cycle tested to 400,000 cycles and fire rated to 2 hours
• Adjustable 60 to 70mm backset Tiebolt Latch for easier installation across common commercial door applications
• Storeroom Function Comboset - Outer Knob always locked, key retracts latch. Internal Lever always free for immediate exit.
• Available in multiple commercial functions with C4 cylinder compatibility and a 10 Year Warranty

PRODUCT SPECIFICATION

• Tested to meet Commercial Specifications
• Adjustable 60/70mm Backset Tiebolt Latch
• 1 x 6 pin C4 PD Cylinder
• 2 x Keys Per Lockset
• Accepts most restricted key systems
• Door thickness - 35mm to 51mm
• Door Prep - 54mm diameter cross bore
• Assembly Screw Size: M8 x 40mm
• Rose Diameter: 75mm
• Standard "T" Strike'
• Cylinder Profile: C4 (LW5)
• Grade: Commercial
• 10 Year Warranty (*)

  2-Hours : This product has been Fire tested & passed up to 2 hours

 Cycle Tested : 400,000 Cycles

 Design for Access and mobility: The Internal Lever complies with the Disability Access requirements of AS1428.1-2009 (DDA)
