LOCKTON

EUROSPAN-5™ SNIB KIT (5-PIN) *EXTENDED* (90mm) - Inc. 1 x 5-Pin Barrel + Snib + Extensions + Keys *Satin Chrome*

Art ID:
495-2-E-SK/90-SC

Description

PRODUCT DESCRIPTION

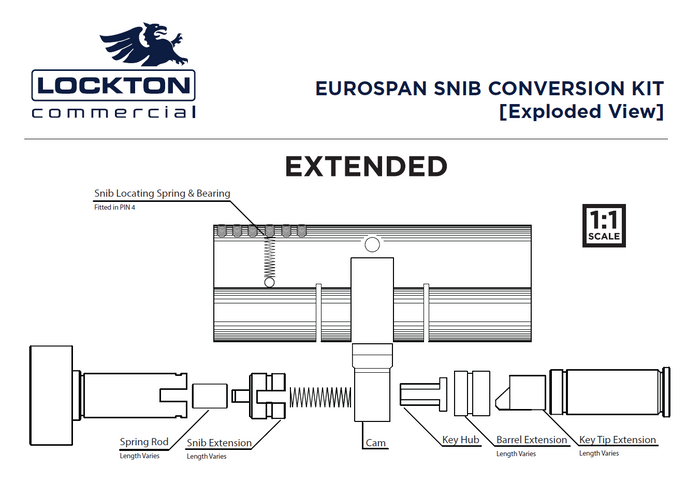

The LOCKTON 'EUROSPAN-5™' Extended Euro Snib Kit is designed to convert existing 'EUROSPAN-6™' ALB Housings (or complete Cylinders) to Single 5 Pin w/ Turn Snib configuration (see RELATED PRODUCTS).

"Built to Span Distance"

The 'EUROSPAN-5' System is available in OFFSET and EXTENDED configurations making it ideal for smart-lock installations, oversized doors and offset retrofitting where additional cylinder length is required.

NOTE: Cylinder housing NOT supplied with Conversion Kit and must be purchased separately (see RELATED PRODUCTS)

PRODUCT SPECIFICATION

  • Configuration: 90mm Symmetrical Extended
  • Barrel Finish: Satin Chrome
  • Key and Barrel Profiles: LW4

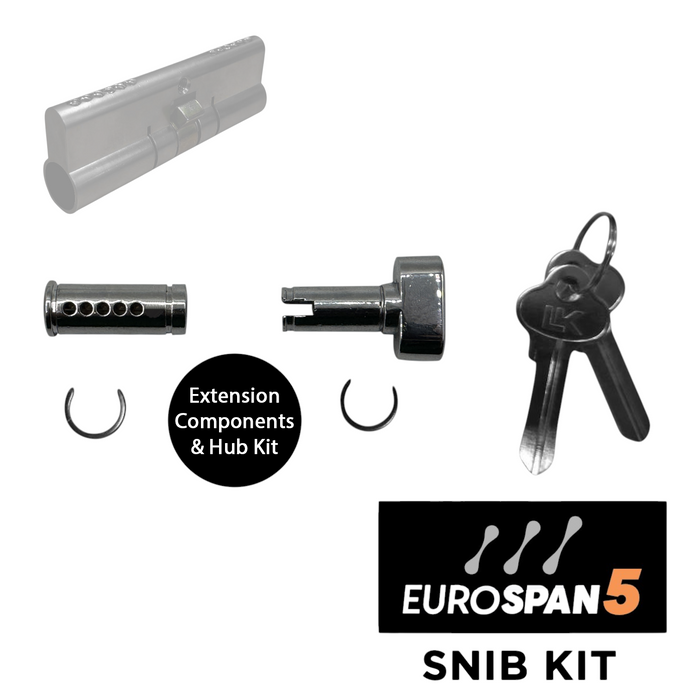

Kit Contains:

  • 1 x 5 Pin 495 Barrel
  • 1 x Turn Snib Assembly
  • 1 x Extension Components & Hub Kit
  • 2 x Circlips
  • 2 x Key Blanks
