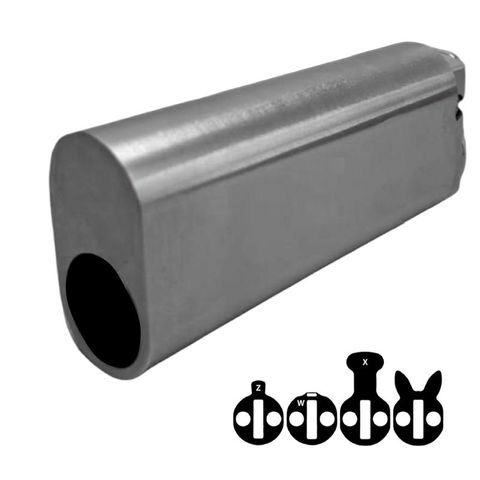

'FishTail' BARREL EXTENSION (570) – suits 74mm Oval Cylinder Housing
Description
PRODUCT DESCRIPTION
The LOCKTON FISHTAIL™ Universal Barrel Extension System is designed specifically for inline restricted key systems, allowing a standard 32 mm barrel to operate in longer Oval cylinders used on smart locks, thick doors and extended hardware applications.
“Extend Any Inline Restricted Barrel — Instantly, Securely, Universally.”

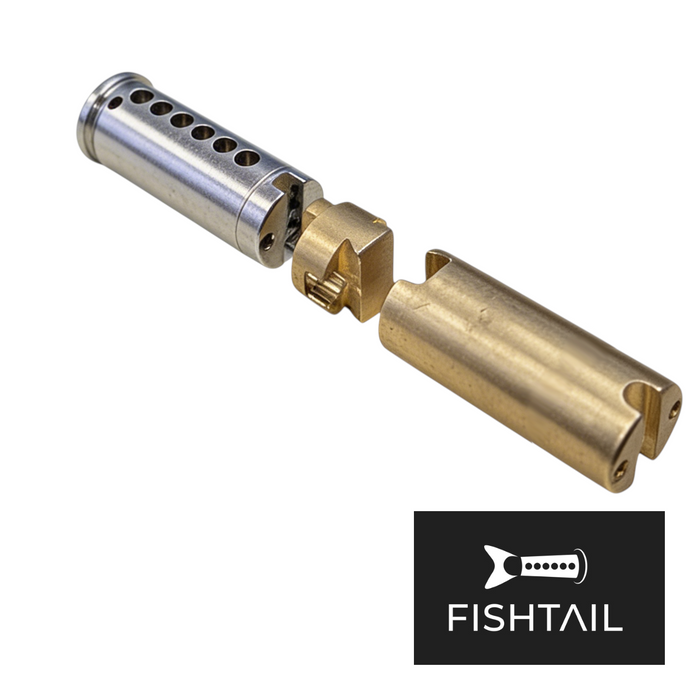

Using a simple two‑piece drive arrangement, FISHTAIL™ extends the reach of the existing barrel through a precision‑fitted Fishtail Cam and Extension Coupler. The cam fixes directly to the rear of the barrel, while the extension piece slides over it and is securely retained inside the Oval cylinder bore. Once assembled, the system provides a strong, smooth and accurate rotational drive suitable for all extended-cylinder applications.
FISHTAIL™ supports 50 mm, 62 mm & 74 mm Oval cylinder configurations, making it ideal for smart‑lock installations, oversized doors and retrofit commercial environments where additional cylinder length is required.

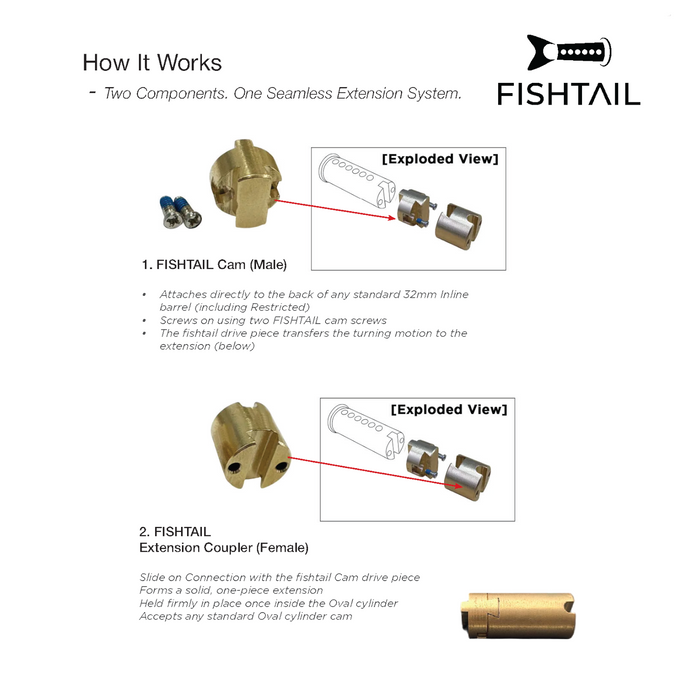

Installation is fast and straightforward: attach the Fishtail Cam, slide on the Extension Coupler, insert the assembly into the Oval cylinder and fit the chosen cam at the rear.
Whether upgrading to smart locks, working with oversized doors, or retrofitting older installations, FISHTAIL™ gives you the reach you need while keeping the restricted key platform exactly as it is.
NOTE: Barrel NOT INCLUDED
PRODUCT SPECIFICATION
- Extension Length: Extends any 32 mm Inline Restricted Barrel to suit 74 mm Oval Cylinders
- Compatible With: All 32 mm Inline Restricted Barrels & all common 74 mm Oval Cylinder housings
- Material: Brass
- 1 × Fishtail Cam
- 1 × 74 mm Extension Coupler
- 2 × Cam Fixing Screws
- Wide Plate Mortice Furniture: 85 - 115mm
- CADELL52 Furniture: 90 - 120mm
