LOCKTON

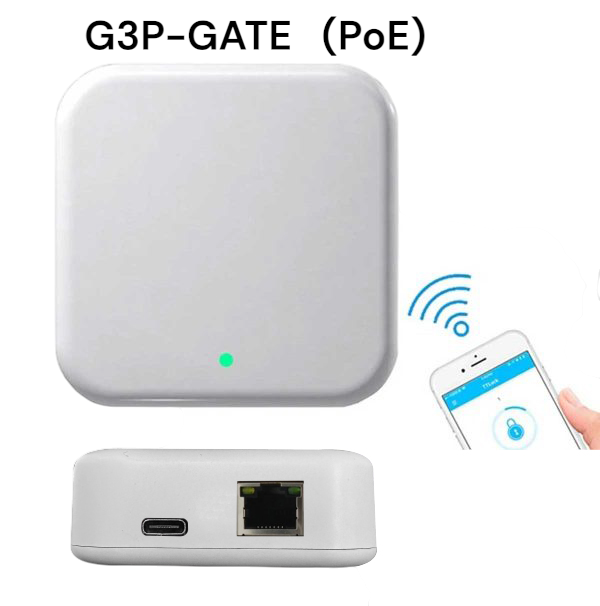

'E-Series' (G3) GATEWAY / BRIDGE (ETHERNET Internet Connection) - POWER over Ethernet

Art ID:
G3P-GATE

Description

PRODUCT DESCRIPTION

Optional Gateway designed to suit LOCKTON E-Series Range. The G3P-GATE enables communication with your Smartlock via Power over Ethernet, allowing you to Change PIN Codes, Add Fingerprints, Create Temporary PIN Codes, Review Audit Trails and other management tasks from anywhere with an Internet connection via the TT Lock App. Purpose built for installation in commercial environments or where a strong internet connection can be achieved.

The gateway can operate up to 100 different Smartlocks.

Please refer to Smartlock installation instruction manual on how to pair up the Gateway with the Smartlock.

NOTE: This unit connects to Internet via Power Over Ethernet cable only

PRODUCT SPECIFICATION

  • Dimensions: 70 x 70 x 26mm
  • Network Interface: RJ45 10/100M PoE (Ethernet)
  • IEEE Standard: 802.3
  • Power Connection: Type-C USB (PoE)
  • Power Input: DC 5V/500mA
  • Bluetooth Signal Range: 10-15 metres
  • 3 Year Warranty (*)

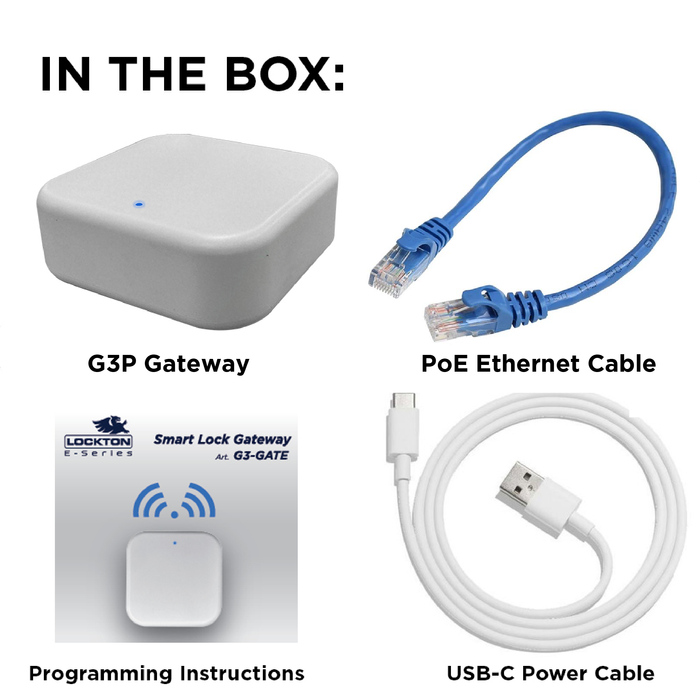

Components
  • G3P Smart Lock Gateway
  • USB-C Power Cable
  • CAT6 Ethernet Cable
  • Programming Instructions
