LOCKTON
'Heavy Duty' DOOR HINGE 100x100mm (3.2mm) *304 Stainless Steel*
Art ID:
HG-HD100-100-SSS
Description
PRODUCT DESCRIPTION
LOCKTON Art. HG-HD100-100-SSS Heavy Duty Ball Bearing Door Hinge w/ Matte Black Finish.
This high quality Hinge is made of 304 Stainless Steel giving it the strength and durability required to make it a long lasting addition to most door applications, especially heavy solid core fire rated doors or doors fitted with door closers up to 100 kilograms.
The ball bearing assembly enables smoother and more fluid movements in comparison with fixed pin models.
- These 'Severe Duty' hinges are rated - Grade 13 for increased resistance to persistent violent attack and near constant usage
- High corrosion & temperature resistance with no corrosion to product after 24hr salt spray test
- Tested to 200,000 usage cycles
PRODUCT SPECIFICATION
- Dimensions (L x W x T): 100 x 100 x 3.2mm
- Material: 304 Stainless Steel
- Finish: Satin Stainless Steel
- Suits Left & Right Handed Doors
- Recommended Door Thickness: 45-50mm
- Max Door Weight: 100kgs

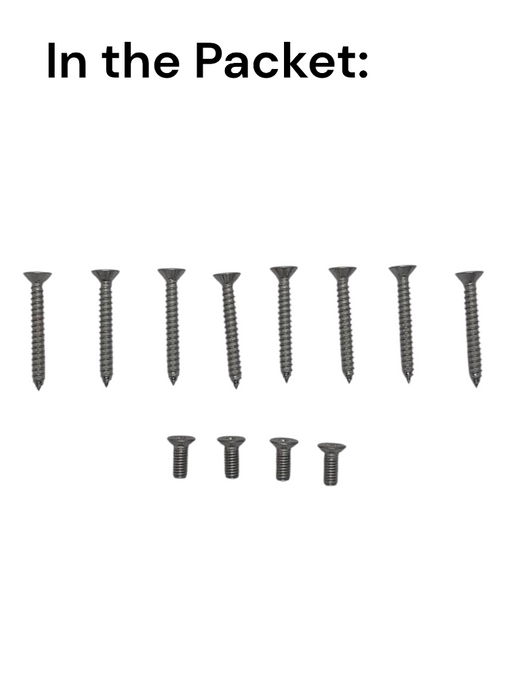

- Supplied with: 8 x Timber Fixing Screws & 4 x Metal Fixing Screws
- 10 Year Warranty (*)
2-Hours : This product has been Fire tested & passed up to 2 hours
