LOCKTON

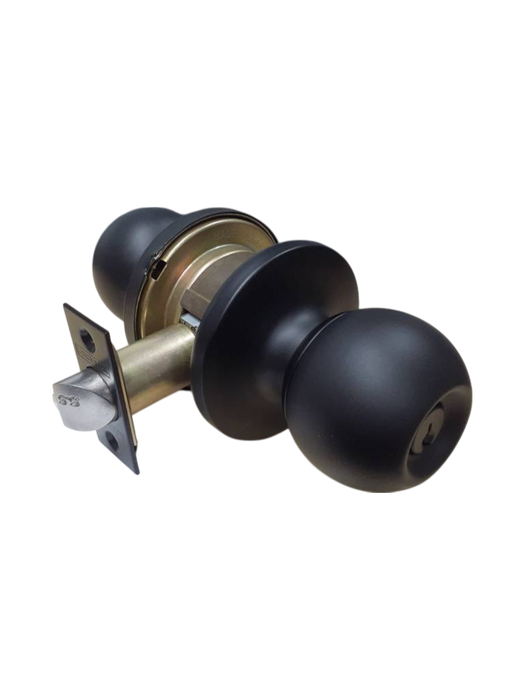

3000 Series' Tiebolt KNOBSET - STOREROOM (75mm Rose / 60-70mm BSet) *Matte Black*
Art ID:
TA3062-BLK
Description
PRODUCT DESCRIPTION
The LOCKTON Art. TA3062-BLK - 3000 Series 'Storeroom' Tiebolt Knobset w/ Matte Black Finish.
- Heavy-duty commercial knobsets, cycle tested to 400,000 cycles
- Adjustable 60 to 70mm backset Tiebolt Latch for easier installation across common commercial door applications
- Storeroom Function Knobset - Outer Knob always locked, key retracts latch. Internal Knob always free for immediate exit.

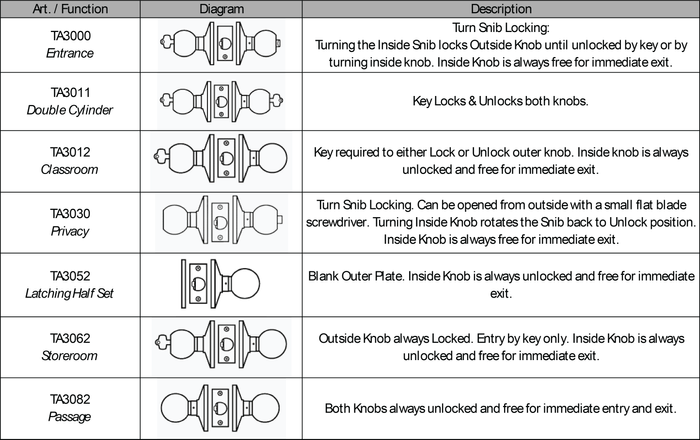

- Available in multiple commercial functions with C4 cylinder compatibility and a 10 Year Warranty
PRODUCT SPECIFICATION
- Tested to meet Commercial Specifications
- Adjustable 60/70mm Backset Tiebolt Latch

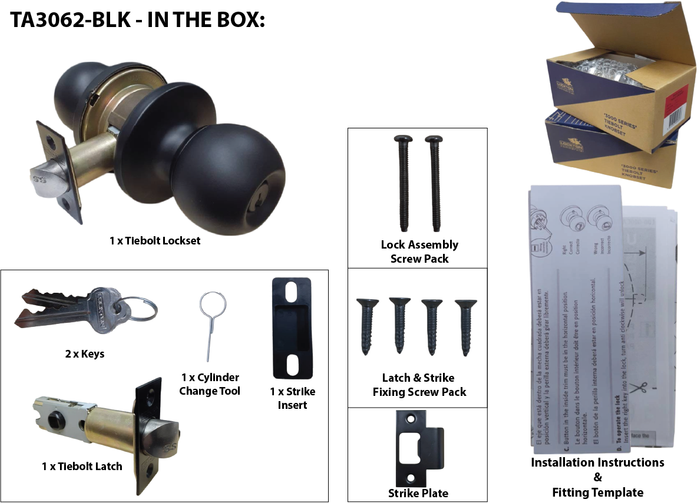

- 1 x 6 pin C4 PD Cylinder
- 2 x Keys Per Lockset
- Accepts most restricted key systems
- Door thickness - 35mm to 51mm
- Door Prep - 54mm diameter cross bore
- Assembly Screw Size: M8 x 40mm
- Rose Diameter: 75mm
- Standard "T" Strike'
- Cylinder Profile: C4 (LW5)
- Finish: Matte Black
- Grade: Commercial
- 10 Year Warranty (*)
Cycle Tested : 400,000 Cycles
