LOCKTON
3000 Series' Tiebolt KNOBSET - CLASSROOM (75mm Rose / 60-70mm BSet) *Satin Stainless Steel*
Art ID:
TA3012
Description
PRODUCT DESCRIPTION

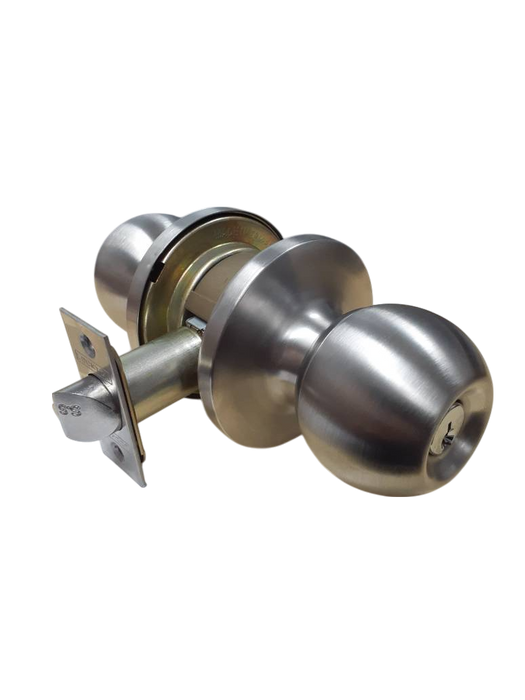

The LOCKTON Art. TA3012 - 3000 Series 'Classroom' Tiebolt Knobset.
- Heavy-duty commercial knobsets, cycle tested to 400,000 cycles
- Adjustable 60 to 70mm backset Tiebolt Latch for easier installation across common commercial door applications

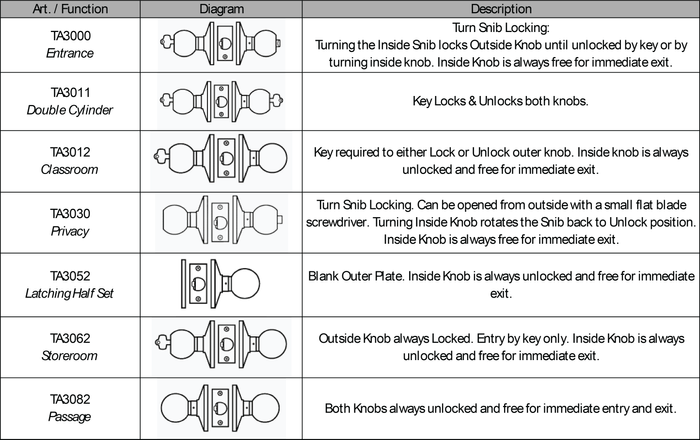

- Classroom Function Knobset - Key Locks and Unlocks External Knob. Internal Knob always free for immediate exit.
- Available in multiple commercial functions with C4 cylinder compatibility and a 10 Year Warranty
PRODUCT SPECIFICATION
- Tested to meet Commercial Specifications
- Adjustable 60/70mm Backset Tiebolt Latch

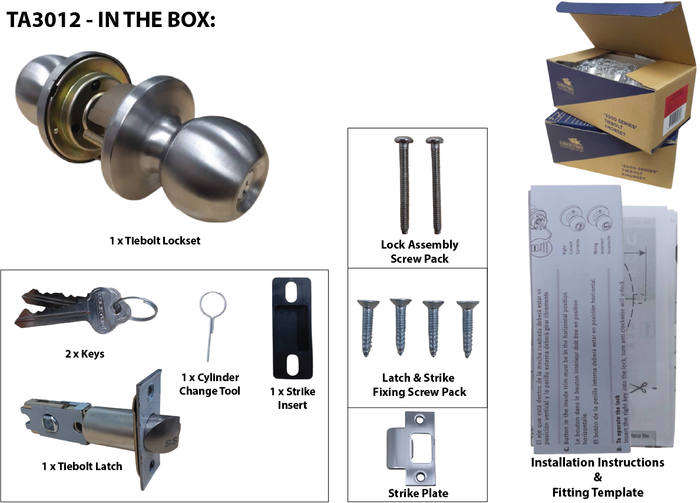

- 1 x 6 pin C4 PD Cylinder
- 2 x Keys Per Lockset
- Accepts most restricted key systems
- Door thickness - 35mm to 51mm
- Door Prep - 54mm diameter cross bore
- Assembly Screw Size: M8 x 40mm
- Rose Diameter: 75mm
- Standard "T" Strike'
- Cylinder Profile: C4 (LW5)
- Grade: Commercial
- 10 Year Warranty (*)
Cycle Tested : 400,000 Cycles
