LOCKTON

'160 Series' DOOR CLOSER - Rack & Pinion - (Adj. 2-4) MATTE BLACK

Art ID:

SGDC160-BLK

Description

PRODUCT DESCRIPTION

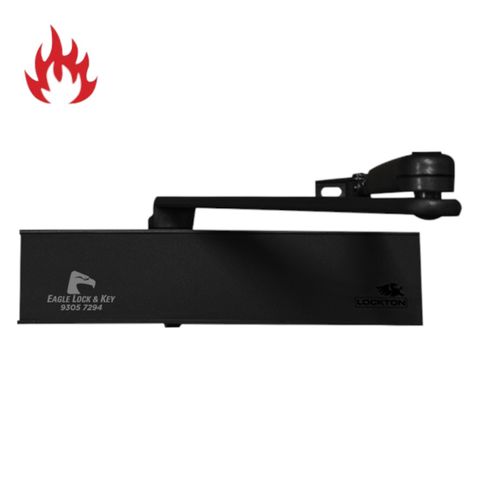

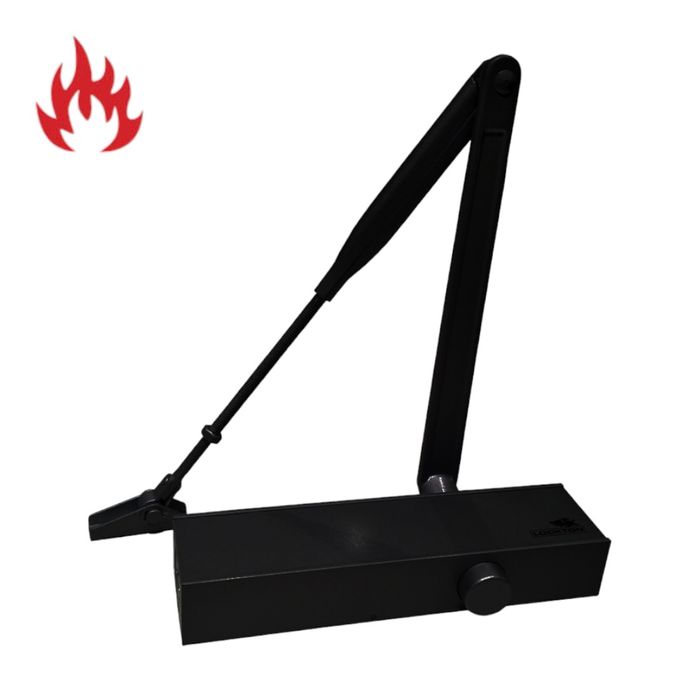

The LOCKTON Art. SGDC160-BLK Rack & Pinion Door Closer w/ Black Finish.

PRODUCT SPECIFICATION

Rack & Pinion operation
Suits Left & Right Opening Doors
Suits Inward & Outward Opening Doors

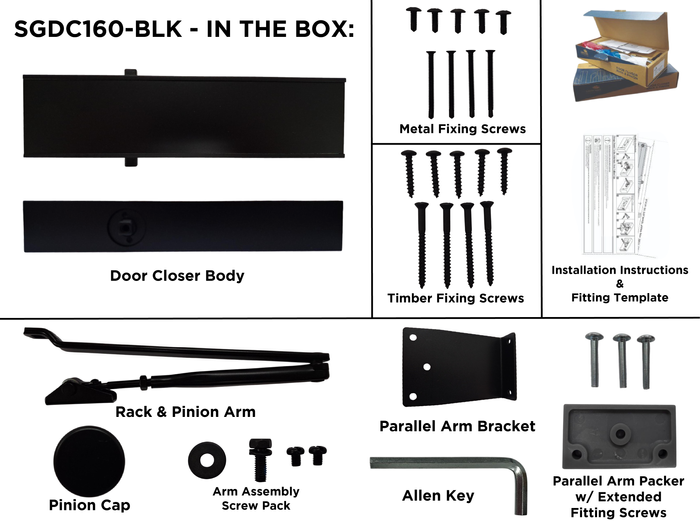

Comes with Standard arm
Parallel Arm Bracket
Supplied with both Timber and "Self Tapping" Metal Screw Packs
Adjustable Backcheck (opening limit)
Simple to read installation instructions
Can be fitted with optional Hold Open Arm or Sliding Track Arm (please see RELATED PRODUCTS)
Closing & Latching Speed Adjustment
Closing range 180° - 15°
Latching speed range 15° - 0°
Suitable for door sizes 2-4 adjustable on door with Hex Key
Size #2: Door width of 850mm & Weight of 40kg
Size #3: Door width of 950mm & weight of 60kg
Size #4: Door width of 1100mm & Weight of 80kg
Finish: Matte Black
10 Year Warranty (*)
Fire Rated AS1905, As1530 (4 Hours)
Tested & certified to BS EN 1154:1997
MADE IN TAIWAN
