LOCKTON

Panic Exit *Wide* DOUBLE DOOR KIT (FIRE RATED) - Inc. 2 x Panic Bars & 1 x O/Lap. Strike

Art ID:
SGPD250-WD-F-DDKIT

Description

PRODUCT DESCRIPTION

The LOCKTON Art. SGPD250-WD-F-DDKIT Panic Exit Device (Panic Bar) Wide Fire Rated Double Door Kit.

PRODUCT SPECIFICATION

  • Complies with BS EN1125
  • Rim type installation
  • 304B Stainless steel construction
  • High Shock resistant latching mechanism
  • All inside components are of high rust resistant alloy & heavily electroplated steel to avoid corrosion
  • NON Handed
  • Alternative external access options available
  • Can use a 201 "Round" Cylinder for exterior access
  • Latch automatically dead latches when door is closed
  • Standard dimensions width - 1120mm (Single & Double Point)
  • Standard dimensions height - 2438mm (Double Point)
  • Suits standard door size (1120mm), can be cut down up to 170mm to suit smaller doors
  • 10 Year Warranty (*)

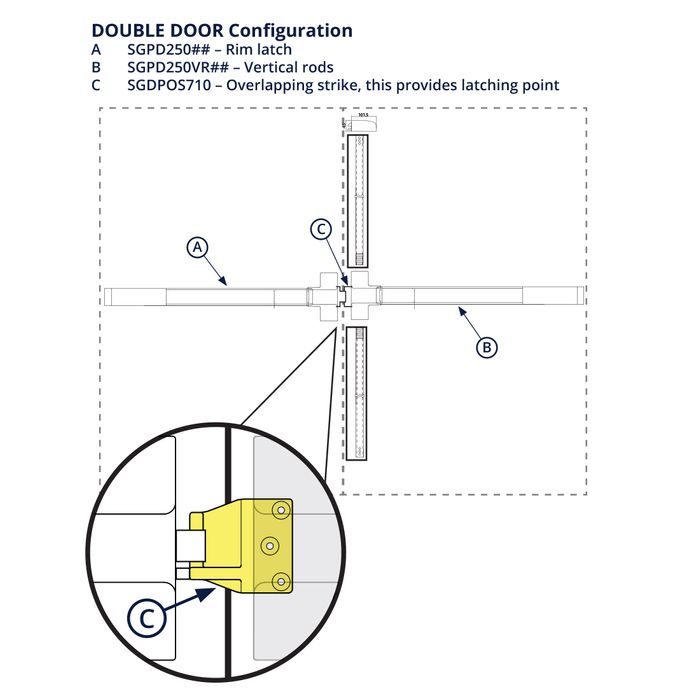

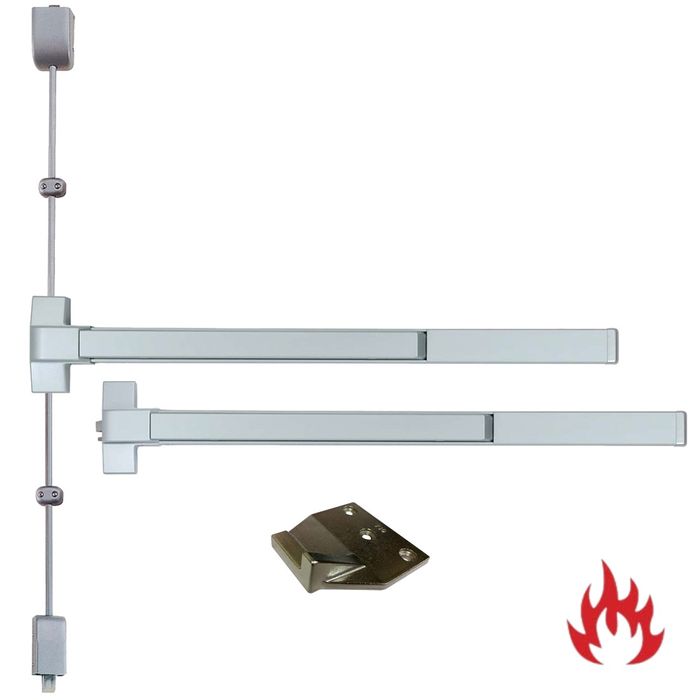

Kit Includes:
  • 1 x SGPD250-F-SS-WD-1 Single Point Wide Fire Rated Panic Bar
  • 1 x SGPD250-F-VR-SS-WD-1 Double Point Wide Fire Rated Panic Bar
  • 1 x SGPDOS710 Overlapping Strike
