'LEG-TON™' (SQ. END) INTERNAL - Lever Only
Description
PRODUCT DESCRIPTION
The LOCKTON Art. LG-712-02V-25-SCP - 'LEG-TON' Internal Square Plate with Lever Only
"Many Brands - One Interchangeable Solution"
The 'LEG-TON™' Furniture range is designed to be an interchangeable furniture solution for all major Australian and New Zealand Mortice Lock Furniture Brands such as LEGGE™, DORMAKABA™, LOCKWOOD™ and LOCKTON™.

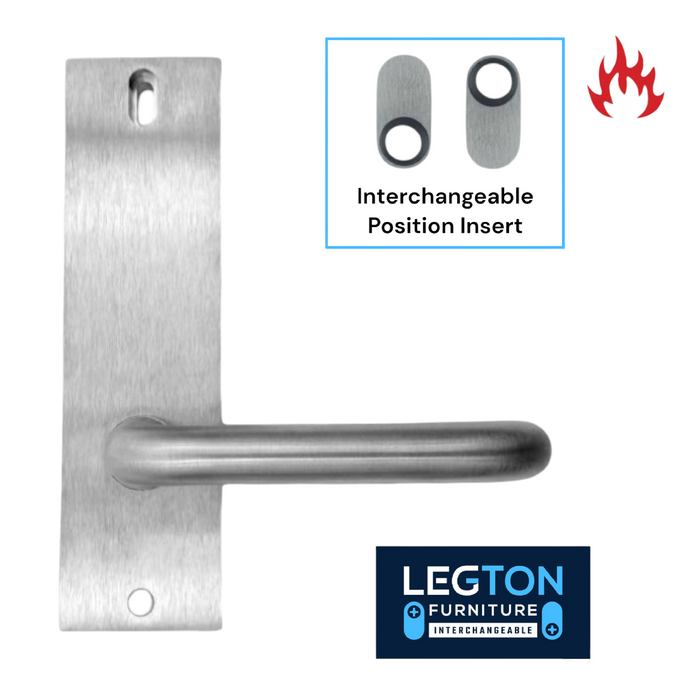

The Internal Furniture comes with an easy to fit rotatable insert - Select Top Hole for LEGGE™ or Bottom Hole for all other brands.
The flexible application of the range means you can easily replace one or both sides of existing furniture installations. It is also carefully designed to cover existing marks, holes and paint outlines from previous installations.
PRODUCT SPECIFICATION
- Material: Solid Brass
- Handing: Easy Change Handing
- Quality Return Spring
- Mounting Screw Size: M4 x 68mm
- Supplied with: 2 x M4 Fixing Screws & 1 x Screw Position Insert
- 10 Year Warranty (*)
Plate Specifications
- Dimensions (L x W x D): 175 x 48 x 12mm
- Mounting Screw Spacing: 148 or 158mm
- End Type: Square
4-Hours : This product has been Fire tested & passed up to 4 hours
SL8 : Physical Security Rating
D8 : Durability Rating (500,000 Cycles)
Sc8 : Cylinder Security Rating
Design for Access and mobility: This product complies with the Disability Access requirements of AS1428.1-2009 (DDA)
Patent Rights Reserved in Australia & Internationally - AU2025902984
Lockwood, Dormakaba and Legge are trademarks of their respective owners.*
