LOCKTON

'E-Series' (Euro Narrow Leverset) SMART DOOR LOCK (LW Retrofit KIT1) *Matte Black*

Art ID:
ELEV36-BLK-H30-LKIT1

Description

PRODUCT DESCRIPTION

The LOCKTON Art. ELEV36-BLK-H30-LKIT1 LW Retrofit KIT1.

This kit is designed to retrofit over existing installations of ‘OPTIMUM & INDURO’ Euro mortice locks while also upgrading from Mechanical to Smartlock.

The one for one design of kit components also removes the need for any modifications to the door or strike and enable direct fitting.

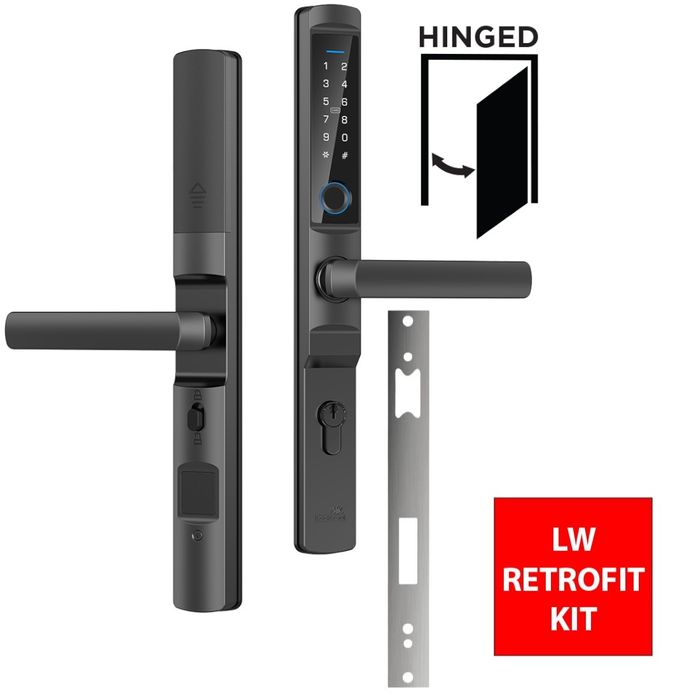

Kit contains:

  • 1 x ELEV36 30mm Hinged Smartlock Set (Art. ELEV36-BLK-H30)
  • 1 x E-Series 'LW' Face Plate (Art. SMLFP210-24-S)

PRODUCT SPECIFICATION

ELEV36

  • Finish: Black
  • Dimensions (L x W): 345 x 36mm
  • Pitch: 85mm
  • IP Rating: 66 (External Handle Only)
  • Lock Backset: 30mm
  • Mortice Lock Strike Plate Dimensions (L x W): 198 x 24mm
  • Suitable door thickness: 28 - 50mm
  • Spindle Size: 8mm
  • Screw Type: M5
  • Handle Projection: 30mm
  • Handle Length: 130mm
  • External Handle protrudes 58mm from door
  • Power Supply: 4 x AAA Alkaline Batteries
  • Battery Life: Approx. 10,000 openings
  • Safe Working Temperature: -20°C to 50°C
  • 3 Year Warranty (*)

Face Plate

  • Face Plate Dimensions (L x W): 210 x 24mm
  • Covers LW 'OPTIMUM' & 'INDURO'
